Pagination in Slices

Warning

This help isn’t complete. It may even look terrible. If you want to work on it, see How to Contribute. You can also ask for help in the Juice Slack #documentation channel.

There are instances when the data given to the card or table slice is too much that it causes the page to become very slow or frozen when loaded. With pagination, the data service can send a chunk of the data to the front-end with additional data being requested by the pagination links (like “next” and “prev”).

Front-end

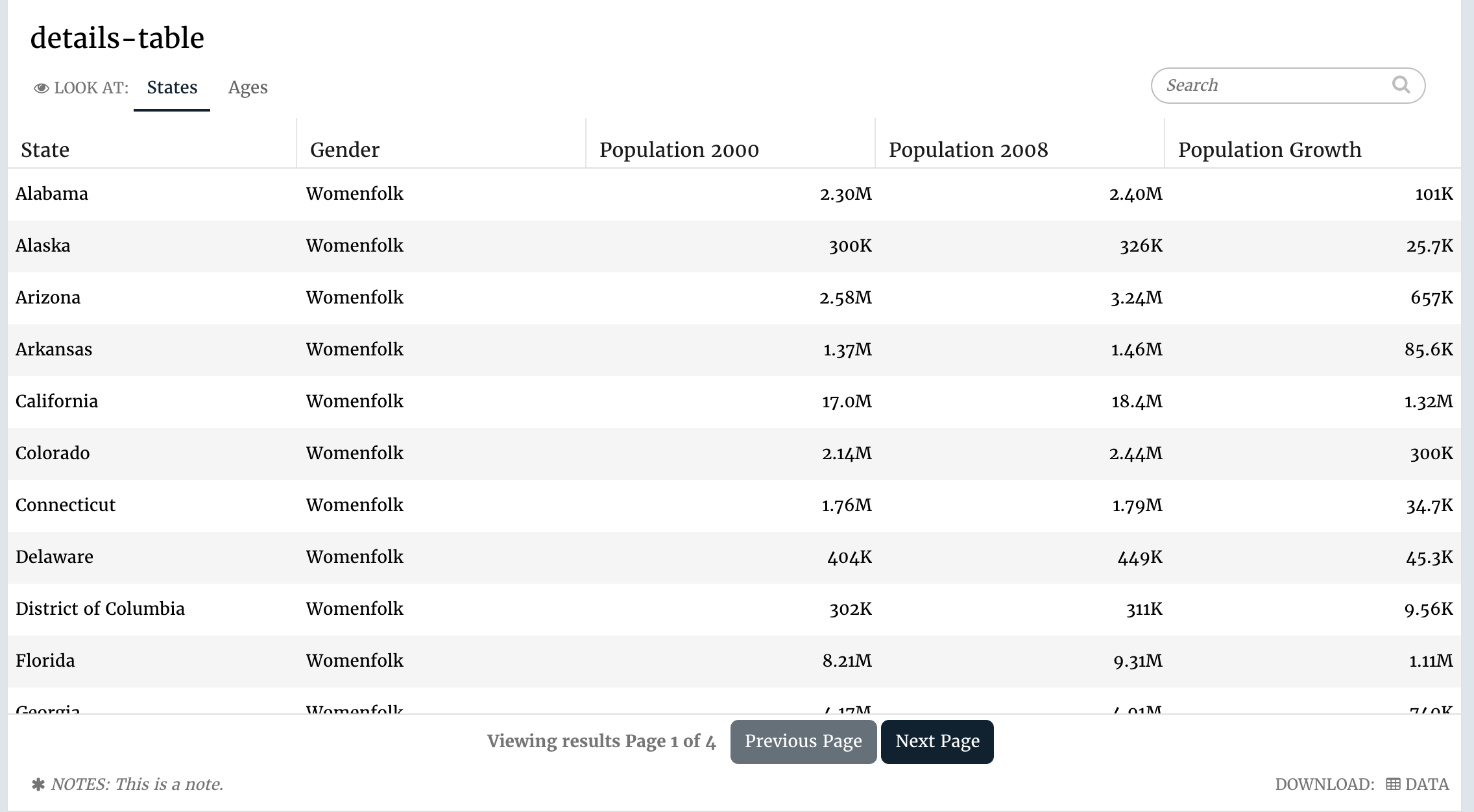

The front-end renders a pagination widget at the bottom of the slice if the slice is configured to be paginated.

Slice Config

To configure a slice to be paginated, set up it’s config like this:

config:
  pagination:
    pageSize: 13

Note

In Juicebox 4 some slices are automatically paginated with default values. You can disable pagination for these slices by setting config.pagination.pageSize to zero, like this.

config:
   pagination:
      pageSize: 0

Selections under pagination

The selections in the slice are maintained across pages during searching, sorting and page traversal. However, if the slice is filtered by any of the slices above it or the global filters, the selections will be matched to the data in the response and only the matches maintained.

How pagination works

When the user clicks the “next” or “prev” links, additional pagination (_pagination) parameters are passed to the data service:

{
  _selectedResponses:{foo: "Please give me a better name", bar: "Please give me a better name"}
  _pagination: { "page": 2, "q": "Nashville", "sort": ["-pop2000"] }
  exclusion:["vent_trach"]
  gender:["F"]
  metric:["pop2000"]
  ...
}

These _pagination parameters are:

page:What page to return (given the config.pagination.pageSize). REQUIRED q:What search phrase to limit to (given the search fields defined in config). The backend is responsible for implementing search. OPTIONAL sort:An array of sort fields. Prefixing the field with a “-” indicates they are sorted in descending order. No prefix means ascending order. OPTIONAL

Backend

If there is a _pagination parameter passed in the request, the data service needs to perform searching or sorting, and then return the appropriate page.

Search needs to be added to the recipe.

recipe().dimensions('a', 'b').metrics('c').search('a','b', q="foo")

All recipes that need to response to a pagination request must implement a order_by clause in their recipes. Failing to do so will generate an exception:

BadRecipe: Recipes that paginate must include a default order_by

When the data service returns the response for the paginated slice, it needs to tell the front-end which page of data it is returning and how many total items exist. This information is injected by the data service into config.pagination when the data service runs:

{
'config': {
  'pagination':
    {
       page: 2,
       pageSize: 13,
       totalItems: 51
    },
'data': [{ 'name': 'items',  'values': [] }],
'metadata': {},
'name': 'Untitled',
'templateContext': {},
'version': '3'
}
