Grouping Slices

Slices can be grouped together and visually presented as a group in a story. Grouping of slices enables:

• slices to filter each other
• slices to be laid out visually together (vertically or horizontally) within a story
• sharing of common config across slices

Defining a Group

Groups are defined in stack.yaml using the slice_group and slices attributes, like so:

label: "My story"
slices:
  - slice_group: mycoolgroup # follows slug rules
    slices:
      - slice_type: option-chooser
        slug: states_dropdown
        title: "What states would you like to look at?"

      - slice_type: option-chooser
        slug: cities_dropdown
        title: "What cities would you like to look at?"

Crossfiltering slices in a group

To allow all the slices in a group to filter each other in addition to being filtered by slices above them, set up the group with the filtering: crossfilter option.

label: "My story"
slices:
  - slice_group: mycoolgroup # follows slug rules
    filtering: crossfilter
    slices:
      - slice_type: option-chooser
        slug: states_dropdown
        title: "What states would you like to look at?"

      - slice_type: option-chooser
        slug: cities_dropdown
        title: "What cities would you like to look at?"

Crossfiltering updates each slice’s eventmap to listen to each other. However, each slice data service will still need to be configured to perform proper filtering. If any of the slices in a crossfiltering group have their eventmap explicitly defined then its value will take precedence over the filtering: crossfilter option.

Sharing common slice config

Properties common across all slices in a group can be specified in one place instead of repeating it for each slice in the group.

label: "My story"
slices:
  - slice_group: mycoolgroup # follows slug rules
    shared:
        include_commands:
            - download-data
        config:
            minSelections: 1
    slices:
      - slice_type: option-chooser
        slug: states_dropdown
        title: "What states would you like to look at?"

      - slice_type: option-chooser
        slug: cities_dropdown
        title: "What cities would you like to look at?"

A property defined on an individual slice in a group will be overwritten by the value of that property defined under shared.

Styling Slice Groups

You can change the layout, width and backgrounds of slice groups.

Layouts

Slices in a group can be laid out in the following ways:

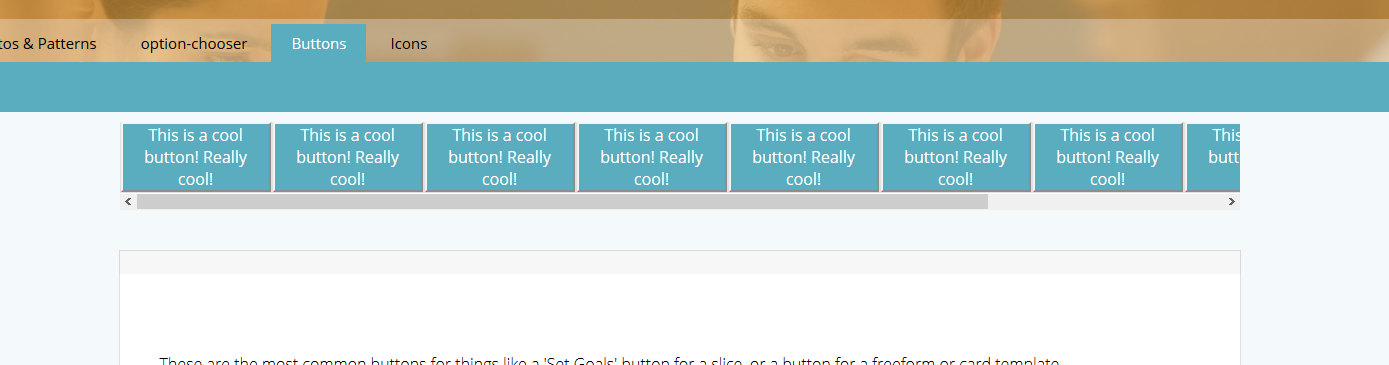

scroll-horizontal: When setup as group_layout: scroll-horizontal, the slices are laid out next to each other horizontally. A scroll bar appears when there are more slices than can fit within the width of the story page.

label: "My story"
slices:
  - slice_group: mycoolgroup # follows slug rules
    group_layout: scroll-horizontal
    slices:
      - slice_type: option-chooser
        slug: states_dropdown
        title: "What states would you like to look at?"

      - slice_type: option-chooser
        slug: cities_dropdown
        title: "What cities would you like to look at?"

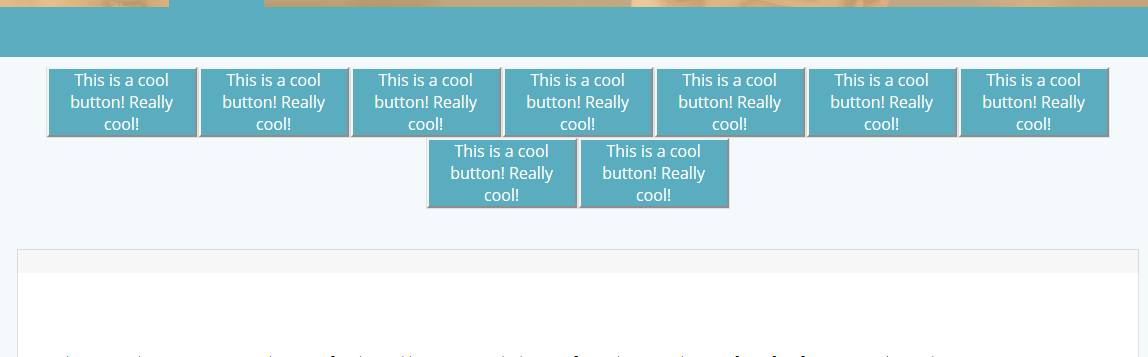

wrap: Slices in a group with group_layout: wrap are laid out next to each other horizontally and wrap to the next line if there are more slices than can fit within the width of the story page.

label: "My story"
slices:
  - slice_group: mycoolgroup # follows slug rules
    group_layout: wrap
    slices:
      - slice_type: option-chooser
        slug: states_dropdown
        title: "What states would you like to look at?"

      - slice_type: option-chooser
        slug: cities_dropdown
        title: "What cities would you like to look at?"

stack: This is the default layout and is the current layout of the slices where they are stacked one below the other.

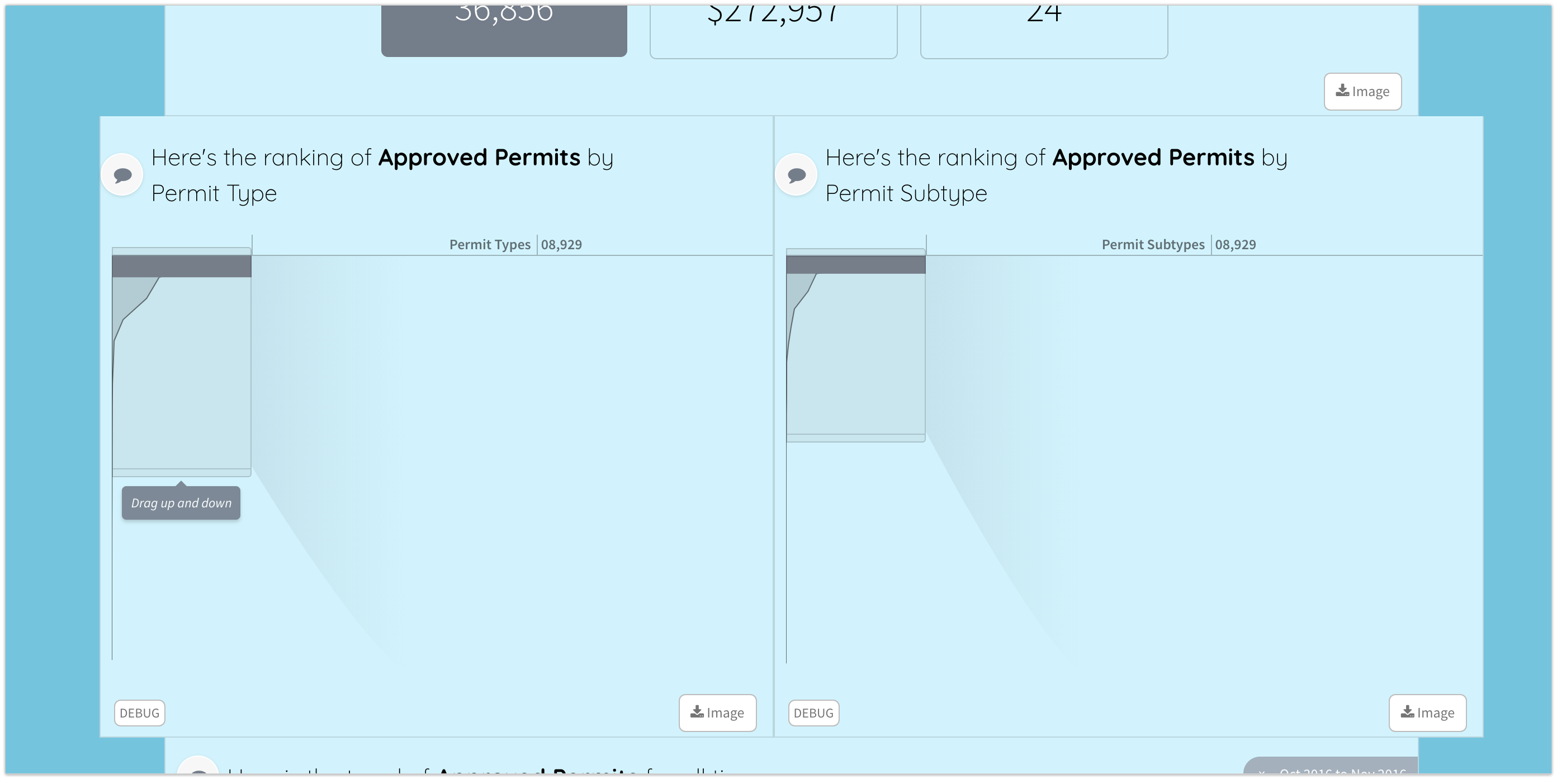

Wide Slice Groups

Slice groups can take up the full width of the browser window. Use the group_style config to define them as wide. Each slice inside a group still controls its own width.

label: "My story"
slices:
  - slice_group: mycoolgroup # follows slug rules
    group_style:
        - "wide"
    slices:
      - slice_type: option-chooser
        slug: states_dropdown
        title: "What states would you like to look at?"

      - slice_type: option-chooser
        slug: cities_dropdown
        title: "What cities would you like to look at?"

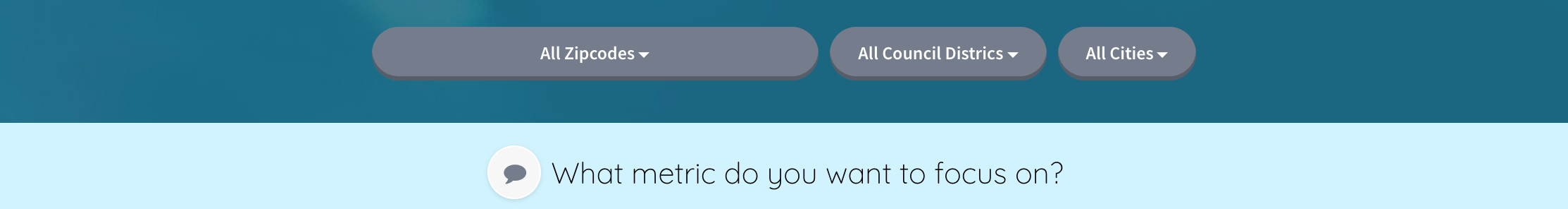

Backgrounds

Slice groups can be given a background as defined in Styling Backgrounds.

label: "My story"
slices:
  - slice_group: mycoolgroup # follows slug rules
    background:
        image: 'erwan-hesry-776630-unsplash.jpg'
        config:
        exp: 0
        blend: 1E708E
        bm: normal
        balph: 90
    slices:
      - slice_type: option-chooser
        slug: zipcodes_dropdown
        title: "Select one or more Zipcodes to focus in on"

      - slice_type: option-chooser
        slug: council_dropdown
        title: "Select one or more Council Districts to focus in on"

      - slice_type: option-chooser
        slug: cities_dropdown
        title: "Select one or more Cities to focus in on"
