Nine Box ¶

Warning

This help isn’t complete. It may even look terrible. If you want to work on it, see How to Contribute. You can also ask for help in the Juice Slack #documentation channel.

Contents

A Nine Box slice is used to present the user with a view of the data plotted into sections of a grid along two axes. It currently only has a default flavor.

Nine box config ¶

Nine box slices support the Common configuration options for all slices. Additional options are:

axisLabels (nine box)¶

Name of the X and Y labels

Optional:	Yes.
Values:	An array of {labels: []} objects. the first object refers to X axis, the second objct refers to Y axis
Example:	config: axisLabels: labels: ["Low", "My X axis", "High"] labels: ["Low", "My Y axis", "High"]

boxLabels ¶

An array of labels that should be displayed inside the box/regions. You can set the position the label should be displayed in the box

Optional:	Yes.
Values:	An array of {position (n\|ne\|e\|se\|s\|sw\|w\|nw),row,col,text} objects
Example:	config: boxLabels: position: ne row: 0, col: 2, text: "High traffic, Many bad stops"

h_lines (nine box)¶

Horizontal line boundaries

Optional:	Yes, default is [“33.3333%”, “33.3333%”]
Values:	Array of widths between boundaries (eg. [“33.3333%”, “33.3333%”] will make three equally spaced regions: 0%-33%, 33%-66%, 66%-100% of the width)
Example:	config: h_lines: ["50%", "25%"]

height (nine box)¶

The height of the visual component

Optional:	Yes, default is 500
Values:	number (in pixels)
Example:	config: height: 400

invertXAxis (nine box)¶

Should the X axis be inverted? eg. if [0-100] is inverted, 100 will appear as: the leftmost point and 0 will be the rightmost

Optional:	Yes, default is `false`
Values:	true\|false
Example:	config: invertXAxis: false

invertYAxis (nine box)¶

Should the Y axis be inverted? eg. if [0-100] is inverted, 100 will appear at: the bottom and 0 will be the topmost point

Optional:	Yes, default is `false`
Values”:	true\|false
Example:	config: invertYAxis: false

margins (nine box)¶

Margins of the visual component

Optional:	Yes, default is {left: 40, bottom: 30, top: 10, right: 10}
Values:	{left, right, top, bottom} (all numbers in px)
Example:	config: margins: left: 40 bottom: 30 top: 10 right: 10

showBoundaryLabels ¶

Should the region boundary labels be shown?

Optional:	Yes, default is `true`
Values:	true\|false
Example:	config: showBoundaryLabels: false

showBubbleLabels ¶

Should the bubble labels be shown?

Optional:	Yes, default is `true`
Values:	true\|false
Example:	config: showBubbleLabels: false

sizeMinMax ¶

Min/max size of the bubble (radius, in pixels)

Optional:	Yes, default is [10, 10] (all bubbles have radius of 10px)
Values:	array, [min, max] in pixels
Example:	config: sizeMinMax: [5, 10]

tooltipTemplateName (nine box)¶

CSS selector of the tooltip template (displayed when mouse is over the bubble)

Optional:	Yes, default is #nine-box-tooltip-template
Values:	CSS selector
Example:	config: tooltipTemplateName: #nine-box-custom-tooltip-template

v_lines (nine box)¶

Vertical line boundaries

Optional:	Yes, default is [“33.3333%”, “33.3333%”]
Values:	Array of heights between boundaries (eg. [“33.3333%”, “33.3333%”] will make three equally spaced regions: 0%-33%, 33%-66%, 66%-100% of the height)
Example:	config: v_lines: ["50%", "25%"]

width ¶

Width of the visual component

Optional:	Yes
Values:	number (in pixels)
Example:	config: width: 810

Domain (possible min/max) values on X axis. Use it if your data does not reflect the full range of points you want to display on the chart (eg. your data is within 5-20 range, when the chart should be show in 0-100)

Optional:	Yes, by default domain is dynamically derived from X field data
Values:	array of [min, max]
Example:	config: x_bounds: [0,10]

y_bounds (nine box)¶

Domain (possible min/max) values on Y axis. Use it if your data does not reflect the full range of points you want to display on the chart (eg. your data is within 5-20 range, when the chart should be show in 0-100)

Optional:	Yes, by default domain is dynamically derived from Y field data
Values:	array of [min, max]
Example:	config: y_bounds: [0,10]

searchFields (nine box)¶

The data attributes to be used for searching.

Warning: If the slice is paginated, you will also need to add search_keys to pagination config.

Here is config for an unpaginated slice.

Optional:	Yes. Default is `["label"]`
Values:	An array of strings
Example:	config: searchFields: ['label', 'score']

For a paginated slice, config would look like the following.

Optional:	Yes. Default is `["label"]`
Values:	An array of strings
Example:	config: searchFields: ['label', 'score'] pagination: search_keys: ['label', 'score'] pageSize: 200

Flavors of Ninebox ¶

Default (nine box)¶

Due to the requirements of the Nine box, there is not a default flavor presently.

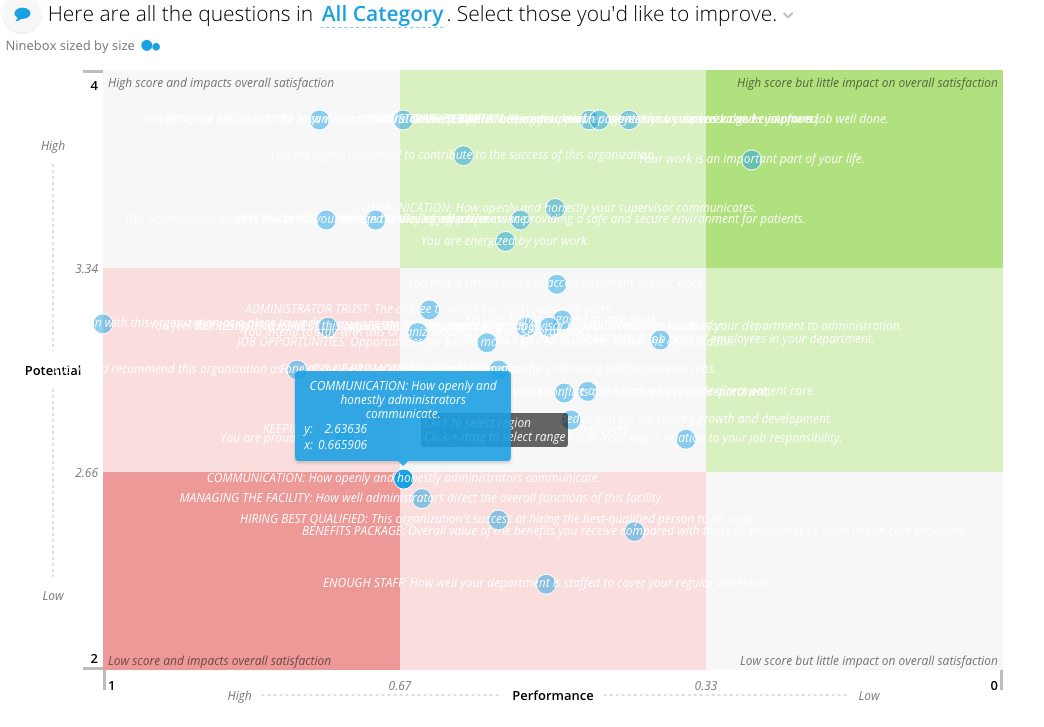

Quad Dimensions ¶

The quad dimensions flavor uses the first dimension as the x value and the second dimension as the y value for grid placement. It renders a label based on the third dimension and the fourth dimension is used as the GUID. The first metric will be used as the size if present.

The code for the quad dimensions flavor looks as follows:

class NineBoxService(EIService):

    def __init__(self, *args, **kwargs):
        super(NineBoxService, self).__init__(*args, **kwargs)
        self.automatic_filter_keys += ('category',)

    def build_response(self):
        self.dimensions = ['correlation', 'meanscore', 'question',
                           'question_order']

        recipe = self.recipe().metrics().dimensions(*self.dimensions
            ).filters(*self.filters)

    self.response['responses'].append(recipe.render('Ninebox'))

The slice in stack.yaml:

- slice_type: "nine-box"
  slug: "nine-box"
  title: "Here are all the questions in <strong><%= lollipop.selectionDisplay() %></strong>. Select those you'd like to improve."
  config:
      "axisLabels":
      - "labels":
        - "Low"
        - "Performance"
        - "High"
      - "labels":
        - "Low"
        - "Potential"
        - "High"
      "height": 600
      "width": 900
      "margins":
        "top": 10
        "right": 10
        "bottom": 40
        "left": 100
      "pluralCountSuffix": "questions"
      "h_lines":
        - "33"
        - "34"
      "v_lines":
        - "33"
        - "34"
      "x_bounds":
        - 0
        - 1
      "y_bounds":
        - 2
        - 4
      "invertXAxis": True
      "tooltipTemplateName": "#nine-box-tooltip-ei-template"
      "boxLabels":
        -
          position: "ne"
          row: 0
          col: 2
          text: "High score but little impact on overall satisfaction"
        -
          position: "nw"
          row: 0
          col: 0
          text: "High score and impacts overall satisfaction"
        -
          position: "se"
          row: 2
          col: 2
          text: "Low score but little impact on overall satisfaction"
        -
          position: "sw"
          row: 2
          col: 0
          text: "Low score and impacts overall satisfaction"
  data_service: "EIDataServices.NineBoxService"

And finally the template for the tooltips:

<script type="text/template" id="nine-box-tooltip-ei-template">
    <div class="nbox-tooltip-content--line1"><%= datum.label %></div>
    <table>
        <tr>
          <td style="text-align: left;"><%= (metadata.y && metadata.y.plural) || 'y' %>:</td>
          <td style="text-align: right; padding-left: 3px;"><%= datum.format('y', (metadata.y && metadata.y.format)) %></td>
        </tr>
        <tr>
          <td style="text-align: left;"><%= (metadata.x && metadata.x.plural) || 'x' %>:</td>
          <td style="text-align: right; padding-left: 3px;"><%= datum.format('x', (metadata.x && metadata.x.format)) %></td>
        </tr>
    </table>
</script>

Any additional dimensions and metrics are not included in the output in anyway.

Dual Metric ¶

The dual metric flavor uses the first metric as the x value and the second metric as the y value for grid placement. It renders a label based on the first dimension. The third metric will be used as the size if present.

The code for the dual metrics flavor looks as follows:

class NineBoxV3Service(CensusService):
    def build_response(self):
        self.metrics = ('popdiff', 'pctfemale')
        self.dimensions = ('state',)
        recipe = self.recipe().metrics(*self.metrics).dimensions(
            *self.dimensions).apply_global_filters(False)

        self.response['responses'].append(recipe.render())
